Circulation Pump (453)
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

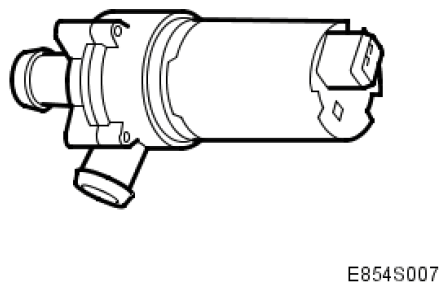

Courtesy of SAAB-SCANIA OF AMERICA, INC. CIRCULATION PUMP REFERENCE
| Power supply B+ |
V |
12 |
| Max current consumption at "rated voltage" |
A |
1,6 |
| Normal current consumption at "rated voltage" |
A |
0,8 |
| Power supply B+ |
pin nr. |
2 |
| Ground |
pin nr. |
1 |
