To remove

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drape protective covers over the front wings.
  2. Remove the wiper arms with 85 80 144 PULLER, WINDSCREEN WIPER ARM .

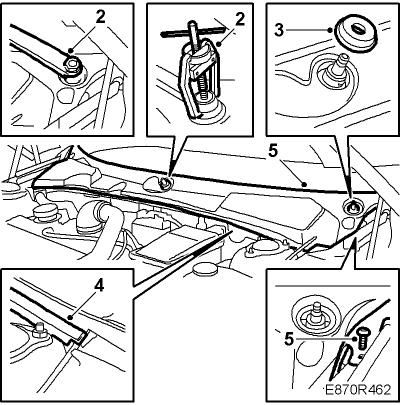

    Fig 1: Illustration For Step 2 To 5
    G05044786Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the rubber seals on the wiper spindles.
  4. Remove the rubber molding along the edge of the bulkhead and loosen the clips on one side. Place the rubber molding on one side.
  5. Loosen the cover over the bulkhead partition space (fastened with clips) by lifting it carefully forwards so that it is released from the windscreen.
  6. LHD:  Move aside the bonnet cable and lift the cover backwards towards the windscreen.
    NOTE:

    Take care when removing the clips.

  7. Loosen the clips holding the front edge of the water shield with a screwdriver. Lift off the water shield.

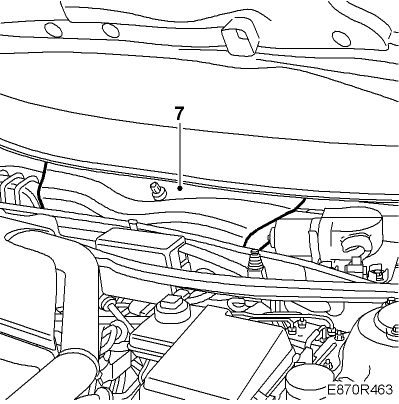

    Fig 2: Identifying Water Shield Clip
    G05044787Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. RHD:  Remove the wiper assembly and unplug the connector.

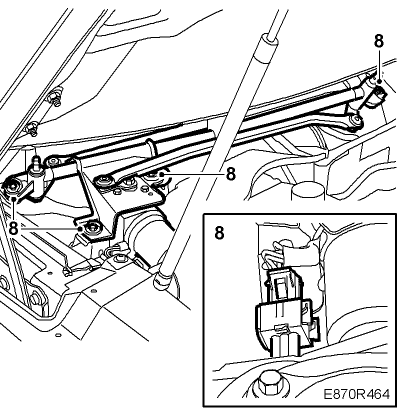

    Fig 3: Identifying Wiper Assembly
    G05044788Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Free the wiring harness over the ventilation fan (fastened with clips).

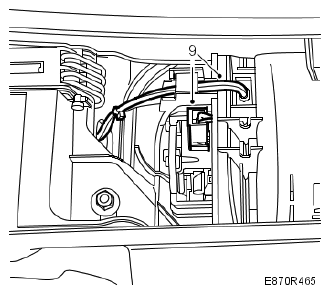

    Fig 4: Identifying Wiring Harness
    G05044789Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Cut off the cable tie (RHD)  and undo the connector to the ventilation fan. Detach the connector from the cover and extract it. (Illustration shows RHD.)
    Fig 5: Illustration For Step 10 To 11
    G05044790Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Press down the wiring harness, including the rubber seal, to the control unit.
  12. Remove the GLOVE BOX .
  13. Unplug and detach the connector from the bracket.

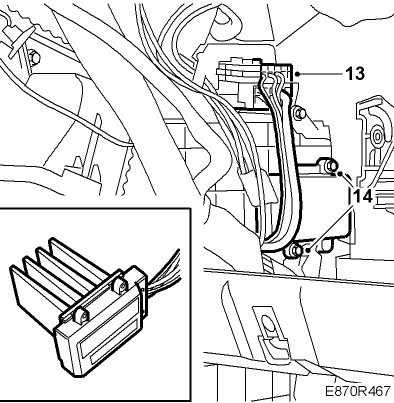

    Fig 6: Illustration For Step 13 To 14
    G05044791Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Unscrew the control unit from the fresh-air filter cover.
