To fit

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

Refit the sensor to the cover (B) by pressing and turning.

Fig 1: Identifying Solar Sensor Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE:
The connector must always be to the right (also for RHD).
Plug in the connector for the sensor.
Fit the cover with solar sensor (A) by pushing it backward.

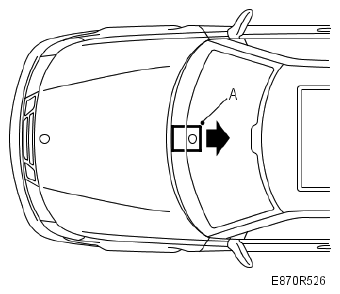

Fig 2: Identifying Solar Sensor Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE:

The connector must always be to the right (also for RHD).
