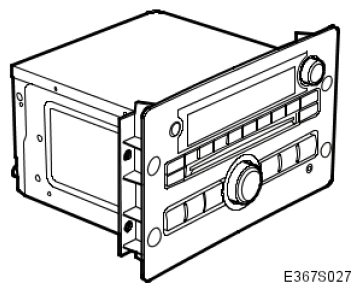

Head unit: Notes
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. CENTRE CONSOLE REFERENCE
| Location |
In the center console. |
| Number of pins |
K14 |
14 |
| |
K16 |
16 |
| Power supply +30: |
Pin No. |
1 (K14) |
| Ground: |
Pin No. |
8 (K14) |
| Trigger voltage: |
Pin No. |
12 (K14) |
| Instrument bus, I-BUS |
Pin No. |
13 (K14) |
