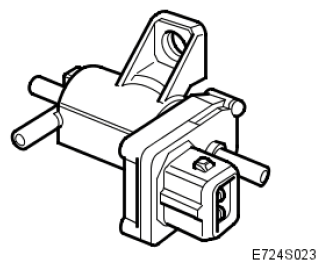

Control Valve, Bypass (605)
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONTROL VALVE SPECIFICATIONS
| Location |
In engine bay on bulkhead partition by connector H42-5 |
| Characteristics |
|
Zero current closed |
| Resistance at 20°C (68°F) |
Ohm |
40±5 |
When the solenoid valve is unenergized, the bypass valve control line is connected after the throttle.
