Main Fuse Board 22a In The Dashboard

Location: On the short side of dashboard beside driver's door.

Upper socket is input current.

LHD

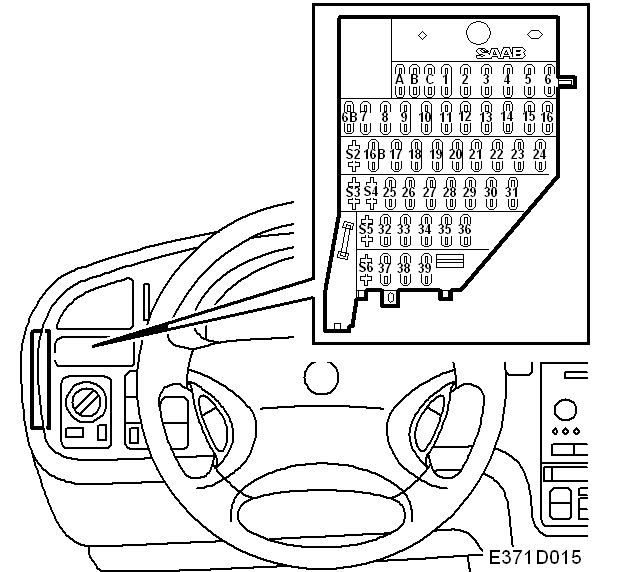

Fig 1: Identifying Main Fuse Board 22a Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

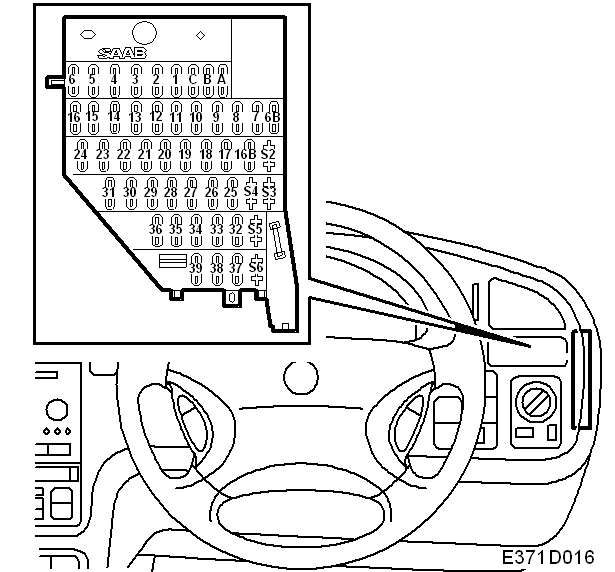

Fig 2: Identifying Main Fuse Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

MAIN FUSE REFERENCE

No.	Value	Type	Function	Illustration
A	30 A	+30	Prepared pull installation	Courtesy of SAAB-SCANIA OF AMERICA, INC.
B	10 A	+15	TCM	Courtesy of SAAB-SCANIA OF AMERICA, INC.
C	7.5 A	+54	Electrically adjustable door mirror DICE to Rev.1 Manual beam length control	Courtesy of SAAB-SCANIA OF AMERICA, INC.
1	15 A	+30	Brake light switch Brake light	Courtesy of SAAB-SCANIA OF AMERICA, INC.
2	15 A	+54	Rear light	Courtesy of SAAB-SCANIA OF AMERICA, INC.
3	10 A		Parking light LH	Courtesy of SAAB-SCANIA OF AMERICA, INC.
4	10 A		Parking light RH	Courtesy of SAAB-SCANIA OF AMERICA, INC.
5	7.5 A	+B	DICE/TWICE	Courtesy of SAAB-SCANIA OF AMERICA, INC.
6	30 A	+54	Electric window lifts, right Prepared pull installation	Courtesy of SAAB-SCANIA OF AMERICA, INC.
6B	10 A		Brake light, prepared pull installation	Courtesy of SAAB-SCANIA OF AMERICA, INC.
7	10 A		Injection valves, petrol engine Solenoid valve, turbo by-pass Solenoid valve, EVAP shut-off EVAP canister purge valve, evaporative emission canister	Courtesy of SAAB-SCANIA OF AMERICA, INC.
8	15 A	+30	SID Interior lighting Courtesy lights SPA Engine, pump, coolant circulation	Courtesy of SAAB-SCANIA OF AMERICA, INC.
9	15 A	+30	Audio System CD changer Data link connector	Courtesy of SAAB-SCANIA OF AMERICA, INC.
10	15 A	+30	Heated rear seat Sunroof Antenna remote control central locking	Courtesy of SAAB-SCANIA OF AMERICA, INC.
11	30 A	+30	Electrically adjustable passenger seat	Courtesy of SAAB-SCANIA OF AMERICA, INC.
12	7.5 A	+30	TCM	Courtesy of SAAB-SCANIA OF AMERICA, INC.
13	20 A	+30	Amplifier	Courtesy of SAAB-SCANIA OF AMERICA, INC.

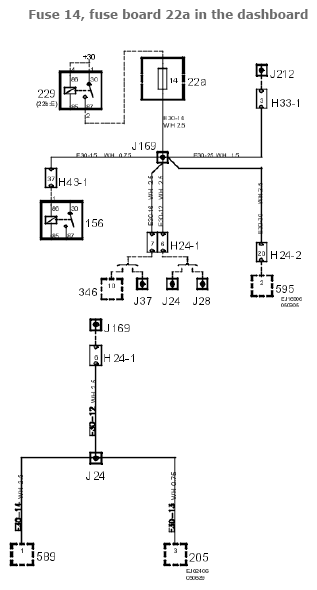

14	30 A		Engine control module DI Mass air flow sensor Solenoid valve, charge air Solenoid valve unit, EGR Solenoid valve, swirl throttle Actuator, throttle body Control module, glow plug	Courtesy of SAAB-SCANIA OF AMERICA, INC.

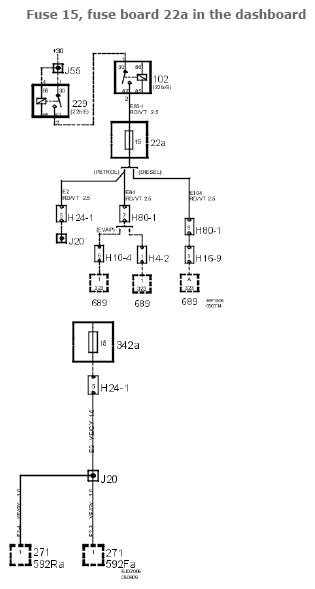

15	20 A		Pre-heating oxygen sensor Fuel pump, petrol	Courtesy of SAAB-SCANIA OF AMERICA, INC.
16	20 A	+30	DICE/Direction indicators	Courtesy of SAAB-SCANIA OF AMERICA, INC.
16B	7.5 A	+30	Road-toll fee, prepared installation OnStar	Courtesy of SAAB-SCANIA OF AMERICA, INC.
17	20 A	+30	MIU Trionic DICE/TWICE	Courtesy of SAAB-SCANIA OF AMERICA, INC.
18	40 A	+30	Electrically heated rear-view mirrors Electrically heated rear window	Courtesy of SAAB-SCANIA OF AMERICA, INC.
19	10 A	+15	Telephone/OnStar	Courtesy of SAAB-SCANIA OF AMERICA, INC.
20	15 A	+30	ACC Interior lighting Rear fog light	Courtesy of SAAB-SCANIA OF AMERICA, INC.
21	10A	+15	Audio/Navigation system ADM Automatic beam length control Pedal switches, cruise control	Courtesy of SAAB-SCANIA OF AMERICA, INC.
22	40 A	+30	Ventilation fan motor	Courtesy of SAAB-SCANIA OF AMERICA, INC.
23	15 A	+30	Central locking system Telephone PMM	Courtesy of SAAB-SCANIA OF AMERICA, INC.
24	20A	+X	Light switch	Courtesy of SAAB-SCANIA OF AMERICA, INC.
25	30 A	+30	Electrically adjustable driver's seat	Courtesy of SAAB-SCANIA OF AMERICA, INC.
26	7.5 A	+15	SPA Sunroof PSM PMM Seatbelt reminder lamp ACC	Courtesy of SAAB-SCANIA OF AMERICA, INC.
27	10 A	+15	Engine control module MIU SID DICE Parking Heater Solenoid valve, charge air Unit, mass air flow sensor Unit, fuel filter, diesel	Courtesy of SAAB-SCANIA OF AMERICA, INC.
28	7.5 A	+15	Airbag/SRS Indicator lamp Passenger Airbag ON/OFF	Courtesy of SAAB-SCANIA OF AMERICA, INC.
29	10 A	+15	ESP	Courtesy of SAAB-SCANIA OF AMERICA, INC.
30	7.5 A	+50	Control voltage, start relay	Courtesy of SAAB-SCANIA OF AMERICA, INC.
31	7.5 A	+54	Switch, cruise control Solenoid valve, heat exchanger Fog light Rain sensor DICE from and including Rev.1	Courtesy of SAAB-SCANIA OF AMERICA, INC.
32	-		-
33	7.5 A	+54	Switch, Direction indicators	Courtesy of SAAB-SCANIA OF AMERICA, INC.
34	30 A	+54	Cigarette lighter	Courtesy of SAAB-SCANIA OF AMERICA, INC.
35	15 A	+54	Running lights	Courtesy of SAAB-SCANIA OF AMERICA, INC.
36	30 A	+54	Electric window lifts, left	Courtesy of SAAB-SCANIA OF AMERICA, INC.
37	30 A	+54	Windscreen wipers	Courtesy of SAAB-SCANIA OF AMERICA, INC.
38	30 A	+30	Electrically heated, seats (ACC)	Courtesy of SAAB-SCANIA OF AMERICA, INC.
39	20 A (petrol)	+30	Limp-home solenoid	Courtesy of SAAB-SCANIA OF AMERICA, INC.
	30 A (diesel)		Heating element, fuel filter, diesel
