4 cyl

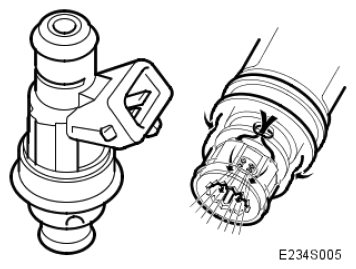

Fig 1: Identifying Injectors, Flow Capacity
G05034863Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS SPECIFICATIONS

Flow capacity ml/30s 176 ± 7
Maximum permissible difference between injectors. ml 14
