Transmission Control Module (TCM), (Part 2/2): Notes

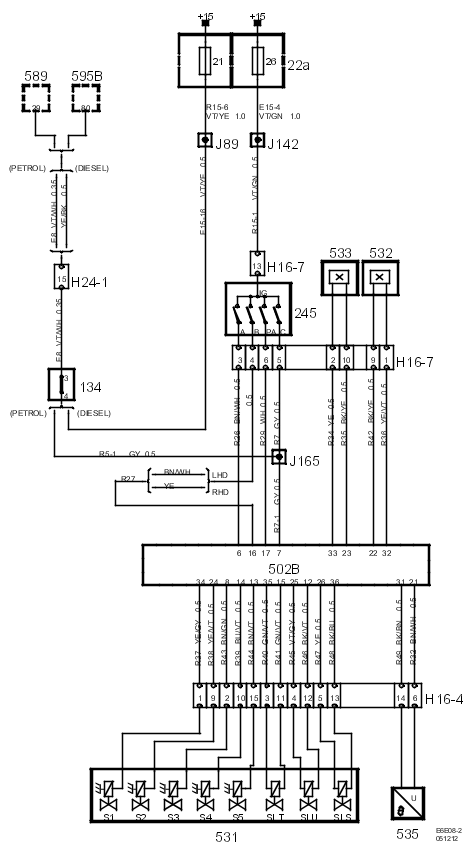

Fig 1: Transmission Control Module (TCM), (Part 2/2) Schematic
G05040648Courtesy of SAAB-SCANIA OF AMERICA, INC.

Also see TRANSMISSION in System Wiring Diagrams for more information.
