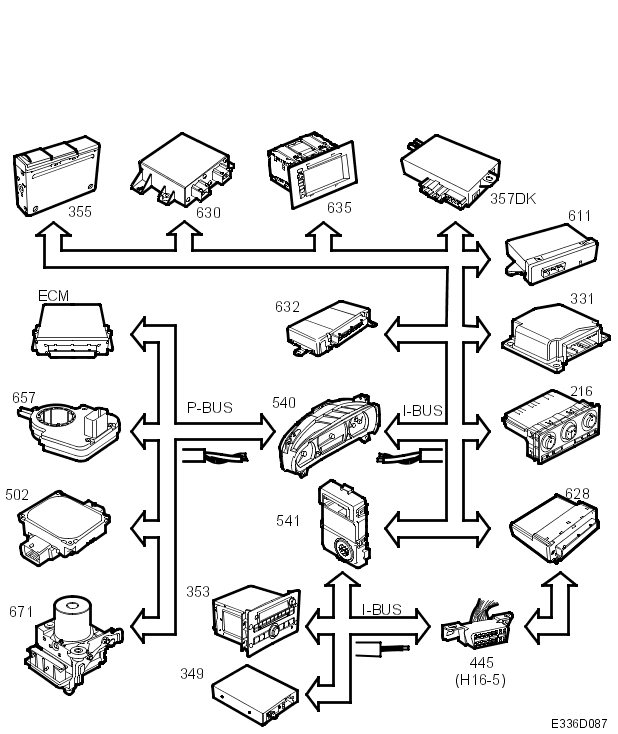

Control Module Bus Outputs
- Maximum permissible torque (used by the engine control system) see MAXIMUM PERMISSIBLE TORQUE .
- Gear selector position (used by the engine control system and MIU) (430/600, 540), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED .
- Message addressed to SID (541), HIGH TRANSMISSION FLUID TEMP. (used by SID), see TRANSMISSION FLUID TEMPERATURE SENSOR .
- CHECK GEARBOX lamp (used by MIU) (540), see CHECK GEARBOX WARNING LAMP .
- SPORT (used by the engine control system and MIU) (430/600, 540), see SPORT SHIFTING PROGRAMME .
- Selected gear 1 - 5 when gear changing manually, (used by MIU)
