Control Units
CONTROL UNITS
| Component | Location |
|---|---|
| ABS/TC-ABS Control Module | Integral to ABS hydraulic unit, at left side of engine bay. |
| ADM Control Module | Integral with rearview mirror. |
| AHL Control Module (Left/Right) | Behind respective headlight. |

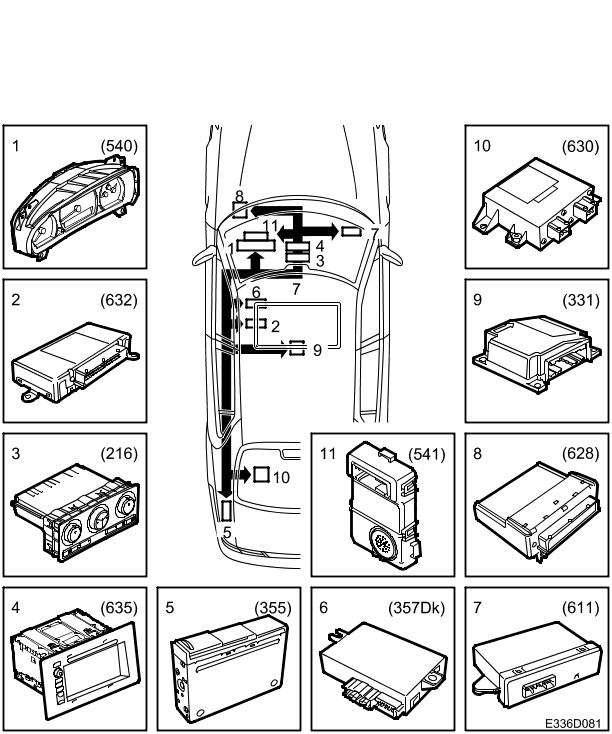

| Air Bag (ACM) Control Module (9) | Under center console, behind handbrake. See Figure. |
| DICE Control Module (8) | On main relay box in dashboard. See Figure. |
| Electrically Adjustable Driver's Seat Control Module (W/Memory) | Under driver's seat cushion. |

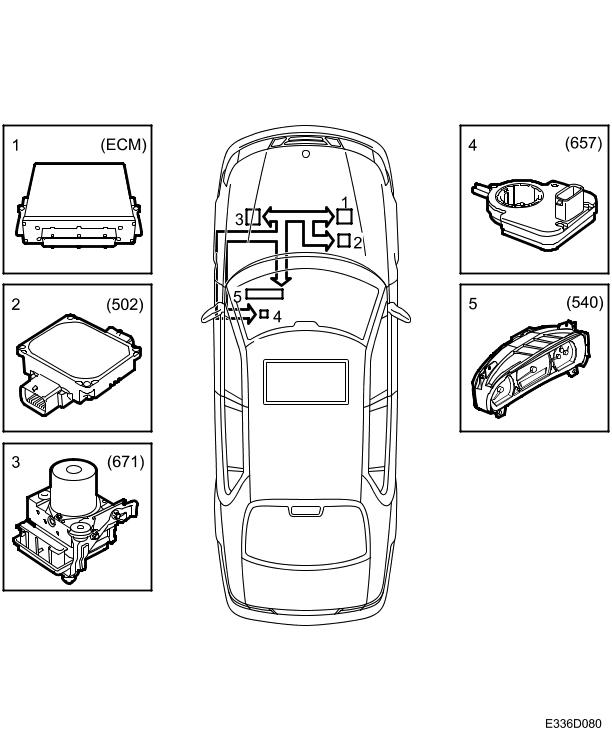

| Engine Control Module (1) | Right rear of engine compartment. See Figure. |
| ESP Control Module (3) | Integral to hydraulic unit, behind main fuse box in engine compartment. See Figure. |
| Fuel Pump Unit | In fuel tank. |
| Headlight Control Module (Left/Right) | Behind respective headlight. |
| Ignition Discharge Module | On camshaft cover. |
| OnStar Control Module (4 Door) | Under rear package shelf. |
| OnStar Control Module (5 Door) | Under right side of luggage compartment floor. |
| PMM Control Module (7) | Above glove box. See Figure. |
| PPS Control Module | Under seat cushion. |
| PSM Control Module (6) | Under driver's seat cushion. See Figure. |
| SID Control Module (11) | On rear of instrument cluster. See Figure. |
| SPA Control Module (10) | Left front of luggage compartment. See Figure. |
| TCM Control Module (2) | Inside glove box. See Figure. |
| TRIONIC Engine Control Module (1) | In right rear of engine compartment. |
| TWICE Control Module (2) | Under driver's seat. See Figure. |
| Ventilation Fan Control | On driver's side of heating & ventilation unit, near firewall. |
