Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Location
Dashboard Main Fuse Board Behind left end of dash. See Figure.

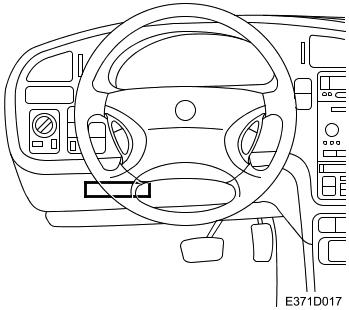

Dashboard Main Relay Box Under dashboard near steering wheel. See Figure.

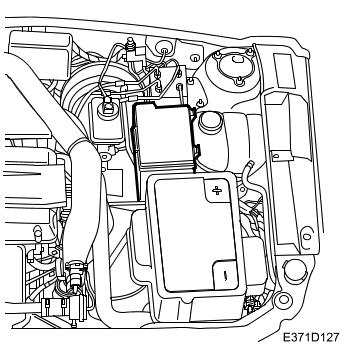

Engine Bay Main Fuse Box Behind battery. See Figure.
Engine Bay Main Relay Box Behind battery. See Figure.
Engine Bay Maxi-Fuses Box Behind main fuse box in engine bay. See Figure.
