Resetting Triggered Limp-Home Mechanism
- Remove the upper engine cover.
- Rectify the fault
- Attach female connector for throttle.
- Turn the ignition ON.
- Clear diagnostic trouble codes.
- Turn the ignition OFF.

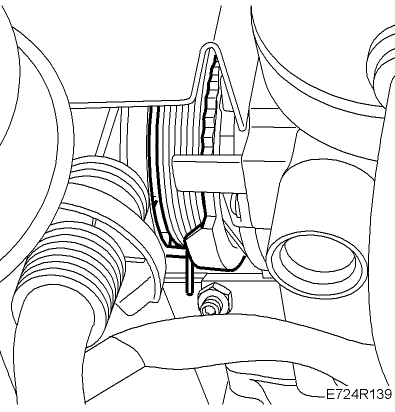

- Carefully slide the end of the spring towards the throttle body using the point of a pen or similar.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

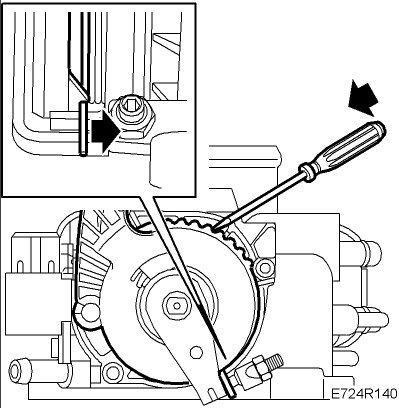

- At the same time, rotate the black tooth disc anticlockwise with a screwdriver. A click will be heard in its end position.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Turn the pedal arm with throttle cable clockwise. Make sure that the throttle arm does not follow the movement of the pedal arm. Refer to the illustration of a reset throttle.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the upper engine cover.
