Cylinder Head

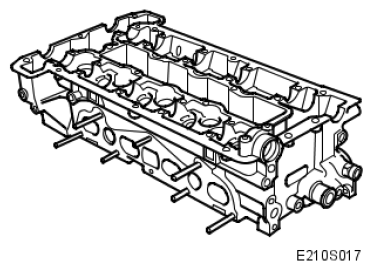

Fig 1: Identifying Cylinder Head
G05034684Courtesy of SAAB-SCANIA OF AMERICA, INC.
CYLINDER HEAD REFERENCE

Height, new cylinder head mm 139.4 - 139.6
Height, minimum after regrinding mm 139.0
