Steering Wheel Angel Sensor

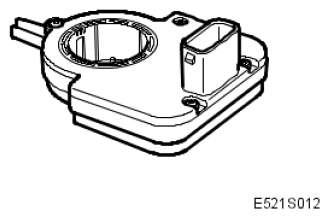

Fig 1: Identifying Steering Wheel Angel Sensor
G05041302Courtesy of SAAB-SCANIA OF AMERICA, INC.
STEERING WHEEL ANGEL SENSOR SPECIFICATION

Test range ±530° used by sensor. Equivalent to 2.9 turns of the steering wheel.
Tolerance from 0-point ±5°
