Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Stabilizer System, Esp
>>
Description & Operation
>>
System Overview
System Overview

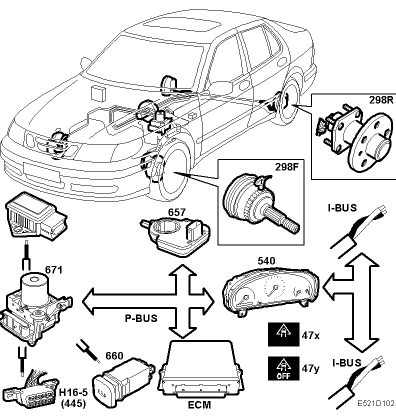

Fig 1: System Overview - Communication Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
ESP control module (671)
Yaw sensor (658)
Steering wheel angle sensor (657)
Wheel speed sensor (298)
Switch, ESP (660)
Indicator lamp, ESP (47x)
Indicator lamp, ESP OFF (47y)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
