DICE Control Module (628)

LHD

Fig 1: Identifying DICE Control Module (628) LHD
G05123267Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

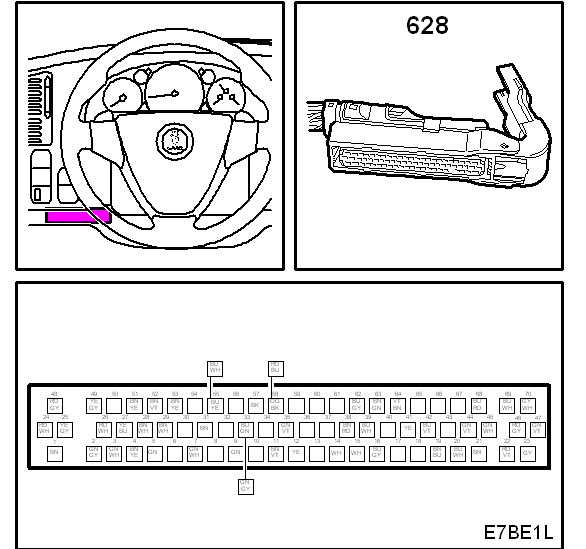

Fig 2: Identifying DICE Control Module (628) RHD
G05125173Courtesy of SAAB-SCANIA OF AMERICA, INC.
