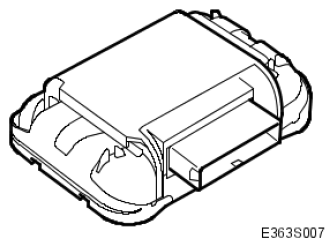

Rain Sensor
WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RAIN SENSOR SPECIFICATION
| Location: |
On windscreen in front of rear-view mirror |
| Manufacturer: |
Bosch |
| Type designation |
|
RSM 3SA |
| Number of pins |
|
9 |
| Quiescent current consumption |
mA |
0 |
| Current consumption, quiescent, ignition on |
mA |
120 |
| Max. current consumption |
mA |
150 |
