To remove

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

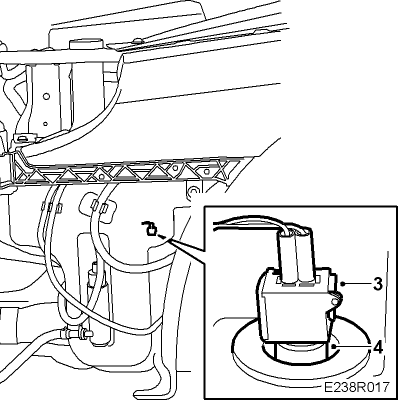

Fig 1: Illustration Steps For 3 To 4
G05122030Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Empty the washer fluid reservoir.
  2. Raise the car.
  3. Unplug the level sensor connector.
  4. Withdraw the level sensor from the washer fluid reservoir.
