Grounding Point G40: Notes

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

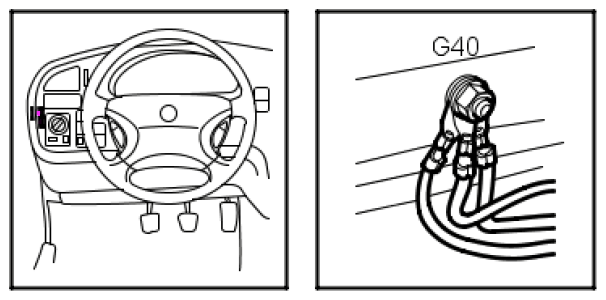

Fig 1: Identifying Grounding Point G40
G05122102Courtesy of SAAB-SCANIA OF AMERICA, INC.

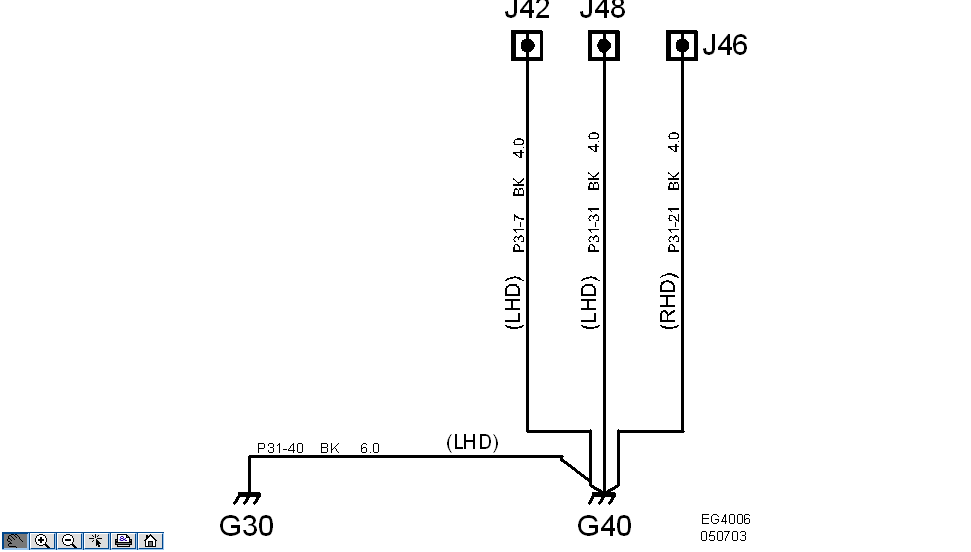

Fig 2: Grounding Point G40 Circuit Diagram
G05122103Courtesy of SAAB-SCANIA OF AMERICA, INC.
