Home >> Saab >> 2007 >> 9-3 Aero, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System V6 >> Component Locator >> Grounding Point G33P >> Notes

Grounding Point G33P: Notes

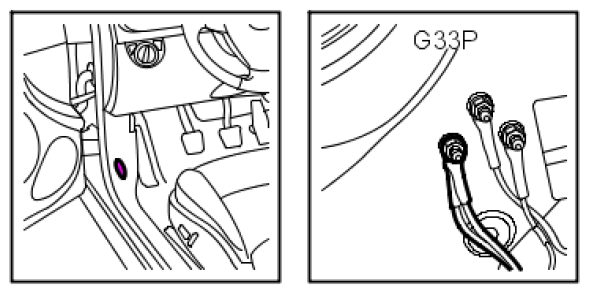

Fig 1: Identifying Grounding Point G33P
G05057666Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  By the floor below the left A-pillar (black tape)
