Fitting Centering Tool, Subframe - Engine

WARNING: This page is about a different variant/trim than selected.

Petrol B207 and B284: Install 83 96 152 KIT, CENTERING TOOL ENGINE on 83 96 145 Centering tool, subframe - engine with 83 96 368 Supplement kit for centering fixture. Pay attention to bolt location. The distance from the washer to the slot in the threads is different on the two short sleeves. Fit only sleeve A as shown in Fig 1. Use Thread locking adhesive, Loctite 270 on the sleeve.
B284: Use 32 025 059 Support.

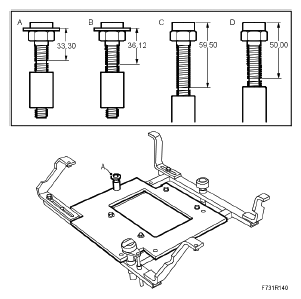

Fig 1: Identifying Bolt Dimension
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Petrol 1.8 XE: Use 83 96 145 Centering tool, subframe - engine with support from 83 96 368 Supplement kit for centering fixture.

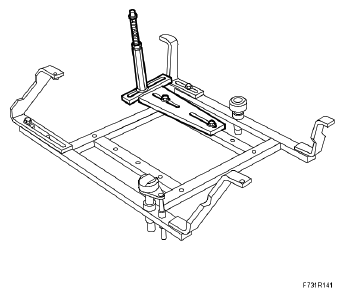

Fig 2: Identifying Supplement Kit & Centering Fixture
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diesel: Fit 32 025 007 Installation fixture on 83 96 145 Centering tool, subframe - engine with support from 83 96 368 Supplement kit for centering fixture.

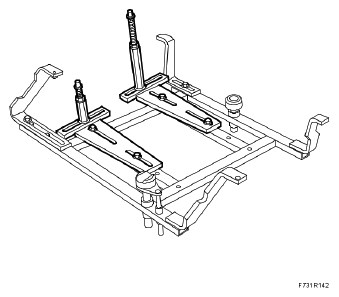

Fig 3: Identifying Supplement Kit & Centering Fixture
Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV: In order to fit 83 96 145 Centering tool, subframe - engine to the subframe, a recess must be made in one of the fixture "legs" shown below.

Fig 4: Identifying Supplement Kit, Centering Fixture Dimension
Courtesy of SAAB-SCANIA OF AMERICA, INC.
