To Remove

WARNING: This page is about a different car, the 2006 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove FRONT BUMPER SHELL .
  2. Unplug the level sensor connector.

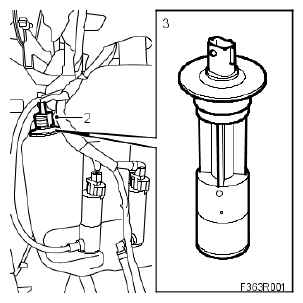

    Fig 1: Removing Washer Fluid Level Sensor & Connector
    G05055627Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Withdraw the level sensor from the washer fluid reservoir.
