Grounding Point G29: Notes

WARNING: This page is about a different car, the 2006 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location

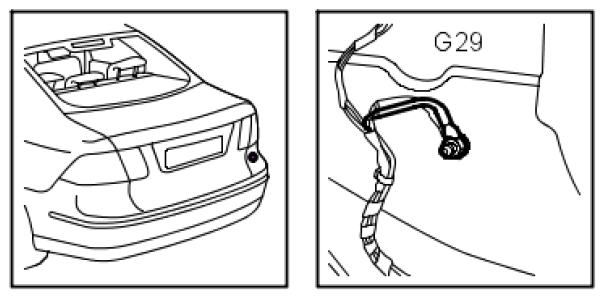

4D/CV: In luggage compartment below right-hand lamp cluster.

Fig 1: Identifying Grounding Point G29

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Identifying Grounding Point G29 Circuit Diagram (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 3: Identifying Grounding Point G29 Circuit Diagram (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

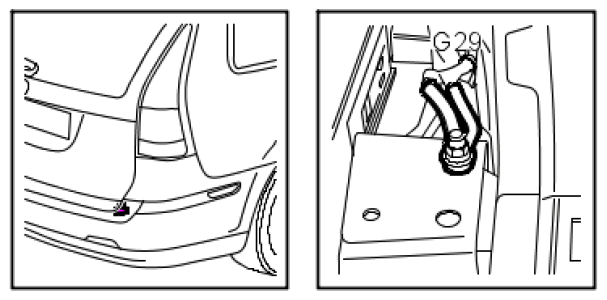

5D: On right-hand rear luggage compartment floor support.

Fig 4: Identifying Grounding Point G29

Courtesy of SAAB-SCANIA OF AMERICA, INC.
