Crimp Connection J9, Front Harness: Notes

WARNING: This page is about a different car, the 2006 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 150 mm from branching of grounding point G31 towards the left headlamp

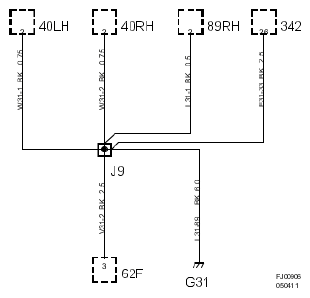

Fig 1: Identifying Crimp Connection J9, Front Harness Circuit Diagram
G05055761Courtesy of SAAB-SCANIA OF AMERICA, INC.
