Crimp connection J119, main harness: Notes

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 140 mm from connector Body 1 on luggage compartment electrical center

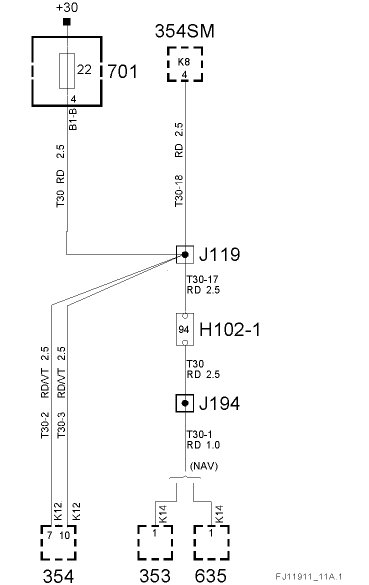

Fig 1: Crimp Connection J119, Main Harness - Wiring Diagram
G05549598Courtesy of SAAB-SCANIA OF AMERICA, INC.
