To remove

  1. Remove the ashtray.
  2. Remove the shaft holding the cigarette lighter and the bulb in place.

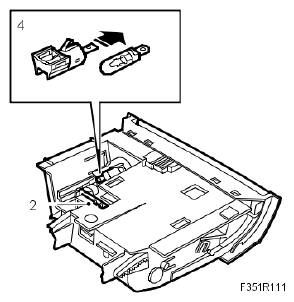

    Fig 1: Illustration For Steps 2 And 4
    G05054385Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Press in the catch and remove the cigarette lighter and bulb.
  4. Remove the bulb by carefully prying the clips loose.
