OnStar control module (673)

Location:

4D: under the parcel shelf

K12

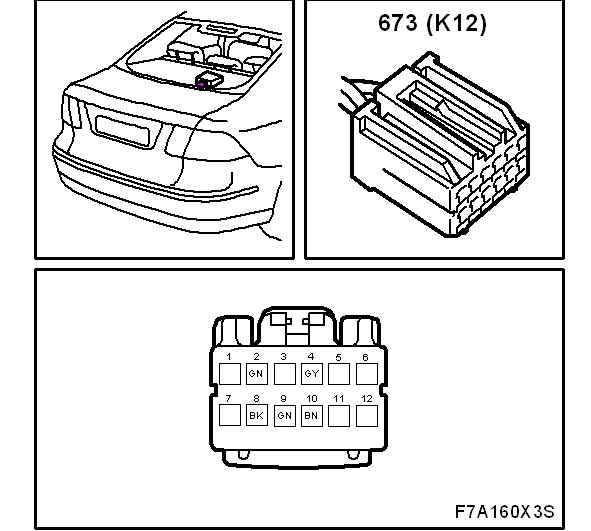

Fig 1: Identifying Onstar Control Module (673), 4D - K12

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

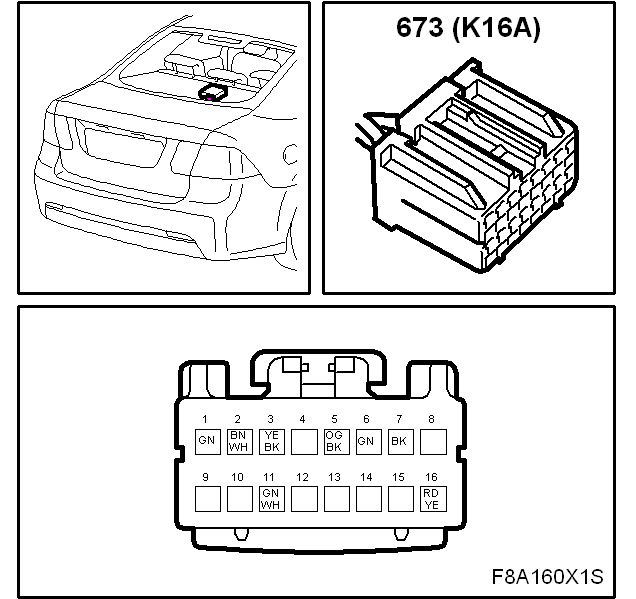

Fig 2: Identifying Onstar Control Module (673), 4D - K16A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

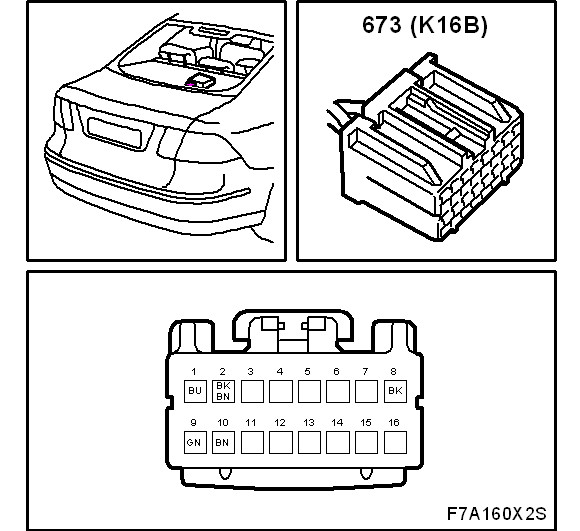

Fig 3: Identifying Onstar Control Module (673), 4D - K16B

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D: under luggage compartment floor in front of subwoofer

K12

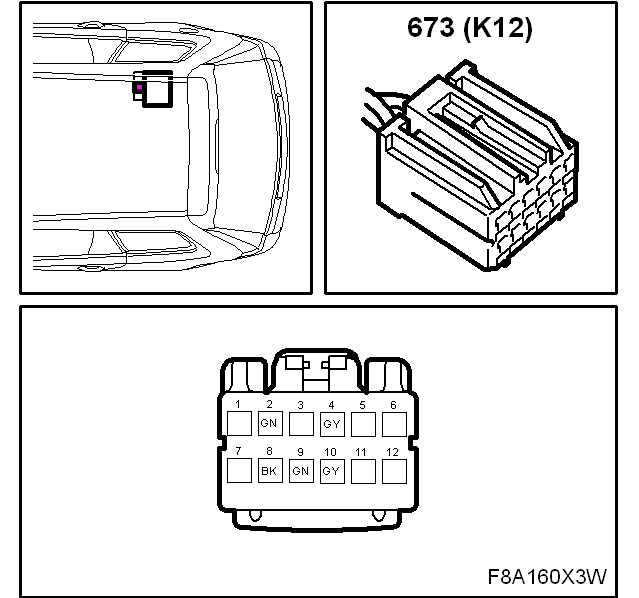

Fig 4: Identifying Onstar Control Module (673), 5D - K12

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

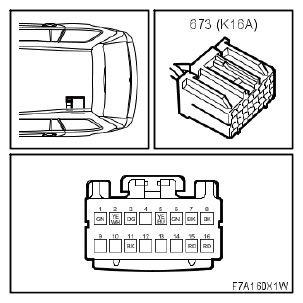

Fig 5: Identifying Onstar Control Module (673), 5D - K16A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

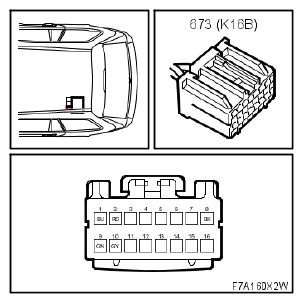

Fig 6: Identifying Onstar Control Module (673), 5D - K16B

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV: in torsion box

K12

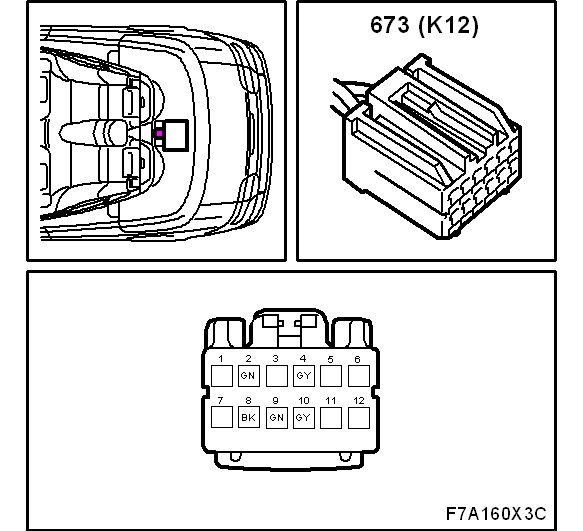

Fig 7: Identifying Onstar Control Module (673), CV - K12

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

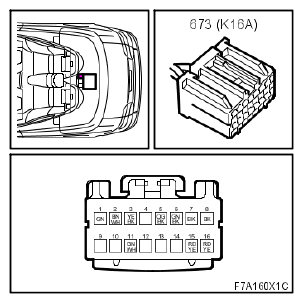

Fig 8: Identifying Onstar Control Module (673), CV - K16A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

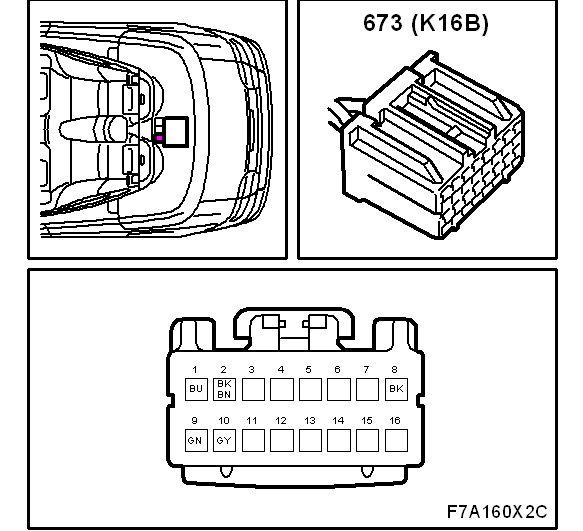

K16B

Fig 9: Identifying Onstar Control Module (673), CV - K16B

Courtesy of SAAB-SCANIA OF AMERICA, INC.
