Interior lighting switch (53)

Location:  in front roof console

4D/5D

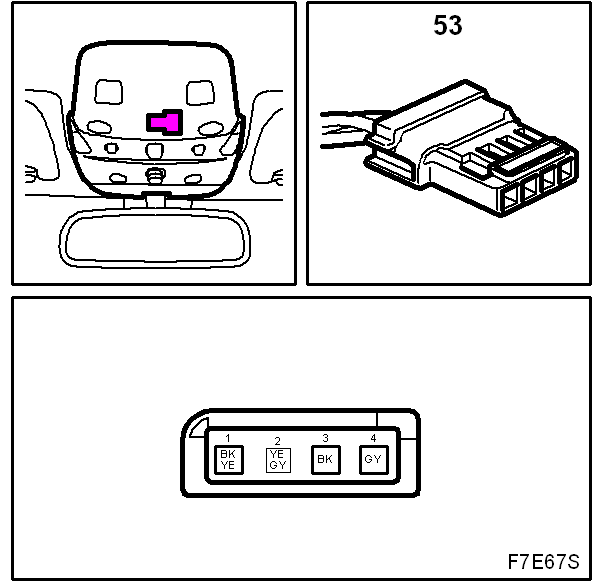

Fig 1: Identifying Interior Lighting Switch (53) - 4D/5D
G05171598Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

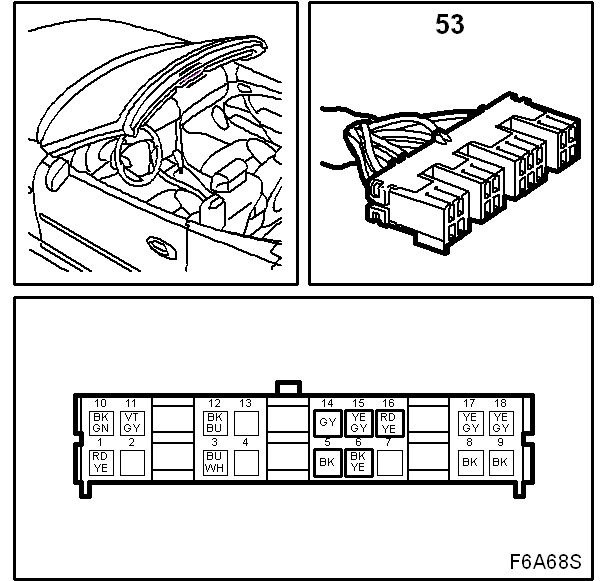

Fig 2: Identifying Interior Lighting Switch (53) - CV
G05054451Courtesy of SAAB-SCANIA OF AMERICA, INC.
