Connected components

CONNECTED COMPONENTS

  Via Crimp connection J108, main wiring harness
102 Relay, fuel pump
323 Fuel pump motor (B207, Z18XE, B284)
702FR Control module, front door, RH
702RR Rear right door module (RRDM)
  Via Crimp J135, inner door harness  in the front right door, which is connected to crimp J108
209FR Lamp, front right door courtesy lighting
388 Switch, tailgate/boot lid
514FR Switch, simultaneous central locking, front right door
  Via Crimp J340, diesel tank harness  , which is connected to crimp J108
323 Motor, fuel pump
323a Engine, fuel pump, parking heater
672 Diesel fuel filter unit
689 Unit, fuel pump
692 Water level sensor, fuel filter
  Via Crimp J117, main harness  and Crimp J120, main harness, which are connected with crimp J108, are cable screens for I-bus connection

Crimp J108

Fig 1: Grounding Point G34S - Circuit Diagram
G05171710Courtesy of SAAB-SCANIA OF AMERICA, INC.

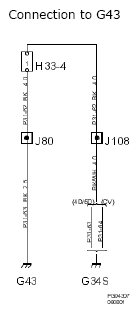

Connection to G43

Fig 2: Grounding Point G34 - Circuit Diagram
G05171711Courtesy of SAAB-SCANIA OF AMERICA, INC.
