Grounding point G30A: Notes

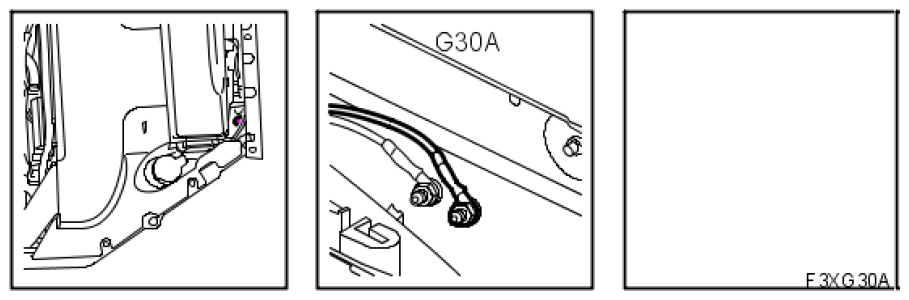

Fig 1: Identifying Grounding Point G30A
G05172314Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Front grounding point on the side plate above the LH front wheel housing

The grounding point is connected to grounding point G31 via crimp J1, the underhood electrical centre 342 and crimp J9/J12.
