Crimp connection J9, front harness: Notes

Location:  Approx. 150 mm from branching of grounding point G31 towards the left headlamp

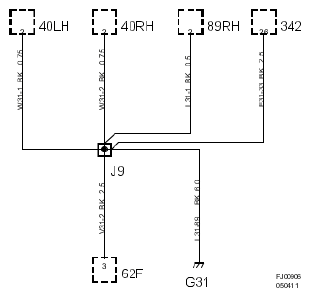

Fig 1: Identifying Crimp Connection J9, Front Harness
G05172269Courtesy of SAAB-SCANIA OF AMERICA, INC.
