To remove

Remove the battery cover and disconnect the negative battery cable.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Raise the car.
Remove the lower engine cover.

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Place a receptacle under the car, connect a hose to the radiator and drain the coolant.
Remove the plastic nuts from the wheel arch liner.

Fig 3: Illustration For Steps 5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Move aside the wheel arch liner, unload the belt tensioner and take off the belt (mark the belt direction). Use 83 96 095 UNLOADING TOOL, BELT CIRCUIT B207E/L .
Lower the car.
Remove the upper engine cover.

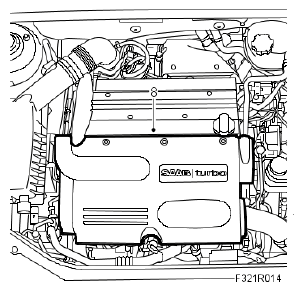

Fig 4: Illustration For Step 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connectors from the engine control module.

Fig 5: Illustration For Step 9
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the engine control module.

Fig 6: Illustration For Step 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the air hose from the air filter housing.

Fig 7: Illustration For Steps 11-12
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the cover of the air filter housing.
Remove the air filter.

Fig 8: Illustration For Step 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector from the pressure sensor.

Fig 9: Illustration For Steps 14-15
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the intake air pipe from the air filter housing and lift up the filter housing.
Detach the coolant hose from the engine and radiator. Bend it aside.

Fig 10: Illustration For Step 16
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the vent hose from the air hose to the throttle body and loosen the fastener in the camshaft cover.

Fig 11: Illustration For Steps 17 And 19-20
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Bend aside the vent hose.
Detach the generator connections.
Remove the generator retaining bolts.
Lift up the generator; see below image.

Fig 12: Illustration For Step 21
Courtesy of SAAB-SCANIA OF AMERICA, INC.
