Component Locator
>>
Control Module, Rear Left Door (702RL)
Control Module, Rear Left Door (702RL)
Location:
in door
J1

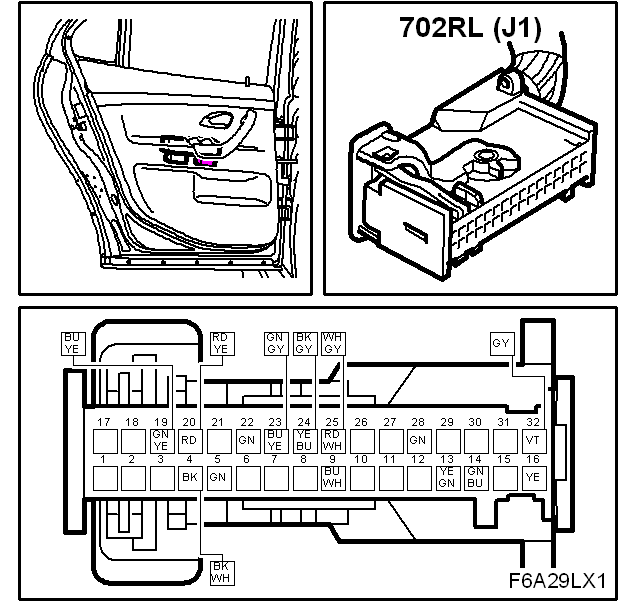

Fig 1: Identifying Control Module, Rear Left Door (702RL) - J1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
J2

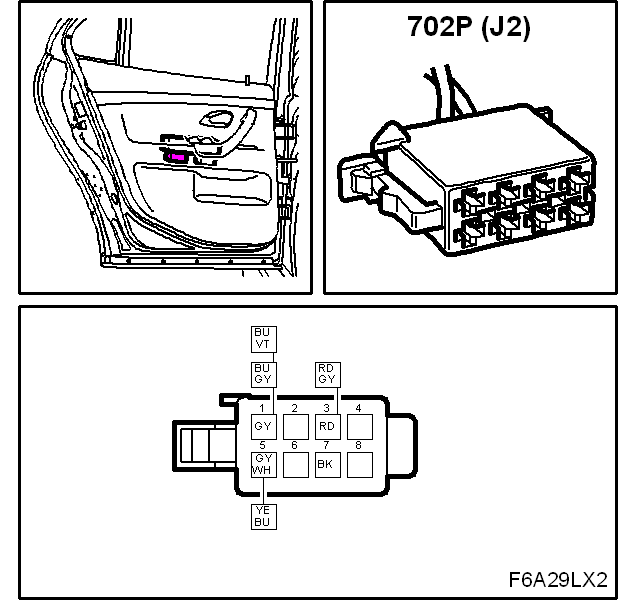

Fig 2: Identifying Control Module, Rear Left Door (702RL) - J2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
