Main Components

WARNING: This page is about a different variant/trim than selected.

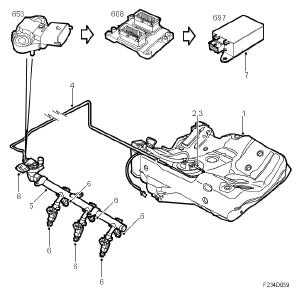

Fig 1: Identifying Fuel System Components
G05057601Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel tank
  2. Fuel pump unit (689)
  3. Fuel filter
  4. Fuel line, delivery
  5. Fuel distribution pipe
  6. Injector (206A-F)
  7. Control module, fuel pump (697)
  8. Fuel pressure sensor (653)
