To remove

WARNING: This page is about a different car, the 2006 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the speaker grille.

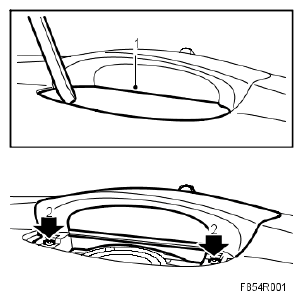

    Fig 1: Removing Speaker Grille
    G05056546Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws.
  3. Lift out the SID unit and unplug the connector.

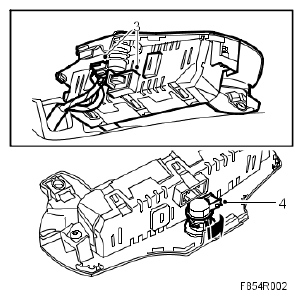

    Fig 2: Removing Solar Sensor From Cover
    G05056547Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the solar sensor from the cover.
