Main Components

WARNING: This page is about a different car, the 2006 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

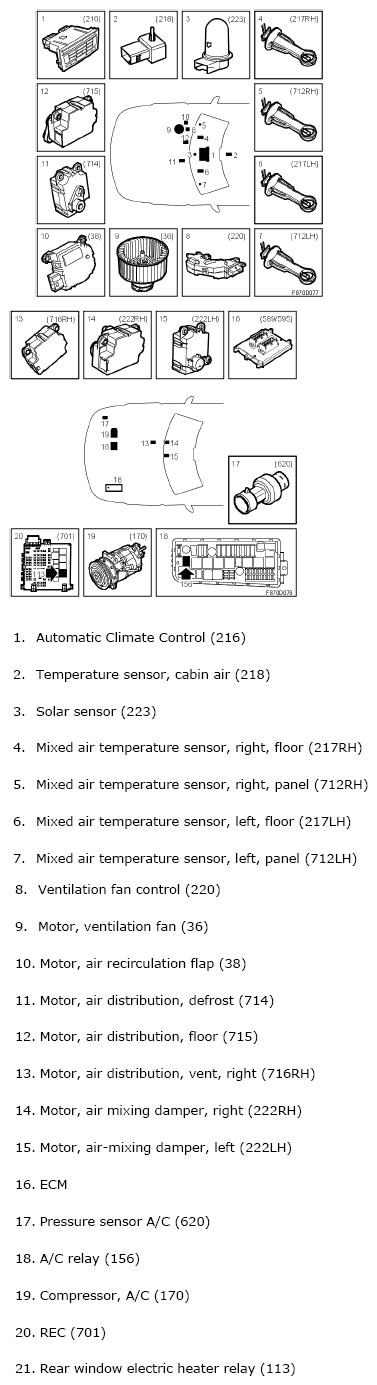

Fig 1: Identifying Automatic Climate Control Main Components
G05067428Courtesy of SAAB-SCANIA OF AMERICA, INC.
