Control functions

The audio system is controlled using buttons on both the steering wheel and the control panel.

Control panel buttons.

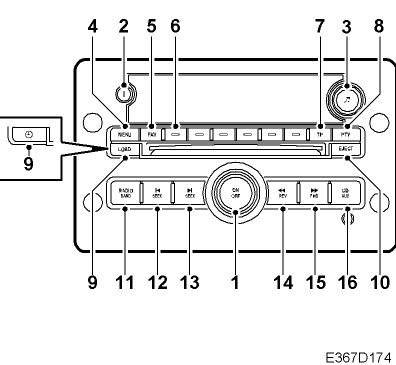

Fig 1: Illustration For Step 1 To 16

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Switching the Audio system on and off. Adjusting the volume.
2. Information about the artist, album and song title. Display of the radio text.
3. The tone control is used for adjustment of the tone and loudspeaker settings. Change of track/file on a CD or MP3 disc and manual frequency setting.
4. Settings menu.
5. Scroll between preset pages.
6. The menu alternatives shown on the display are selected with the appropriate menu selection button directly underneath.
7. Traffic messages on/off
8. Activation and selection of program type.
9. cars with CD changer:  Loading of CD or MP3 discs.

   Cars without CD changer:  Setting the time and date.

10. Loading a CD or MP3 disc.
11. Activating the radio and changing the frequency band.
12. Automatic frequency searching downwards and change of track/file backwards on a CD or MP3 disc.
13. Automatic frequency searching upwards and change of track/file forwards on a CD or MP3 disc.
14. Automatic frequency searching and rapid play backwards of a track/file on a CD or MP3 disc.
15. Automatic frequency searching and rapid play forwards of a track/file on a CD or MP3 disc.
16. Activation of CD media or a portable player.

Steering wheel controls, audio system:

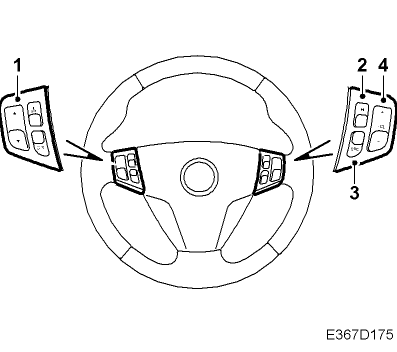

Fig 2: Illustration For Step 1 To 4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. "Arrow up"/"Arrow down": Change of preset for radio stations, change of track on the CD or MP3 disc.
2. "NXT": Automatic frequency searching upwards, choice of next track on a CD or MP3 disc. Activation of test listening of radio stations
3. SRC: Push to change between Radio, CD, MP3, CD changer or portable player.
4. VOL: Adjusts the volume.
