Crimp connection J105, main harness: Notes

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:

4D/5D:  Approx. 290 mm from branching of grounding point G14 towards airbag control module

CV:  Approx. 320 mm from branching to grounding point G14 towards the airbag control module

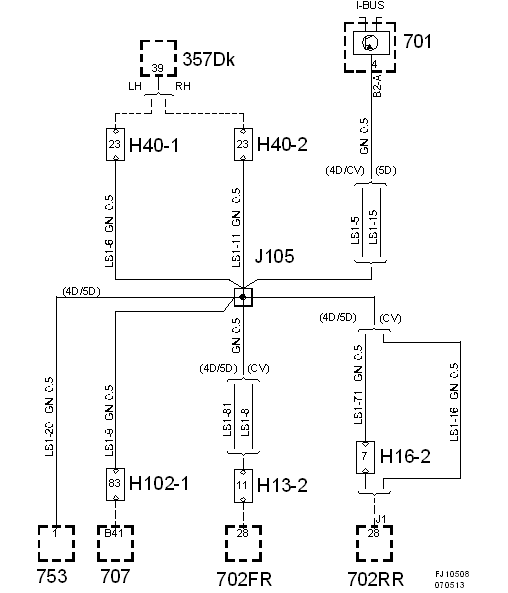

Fig 1: Crimp Connection J105, Main Harness - Circuit Diagram
G05173107Courtesy of SAAB-SCANIA OF AMERICA, INC.
