Grounding point G41S: Notes

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

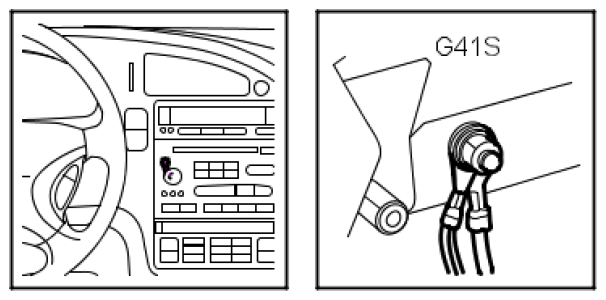

Fig 1: Identifying Grounding Point G41S
G05124341

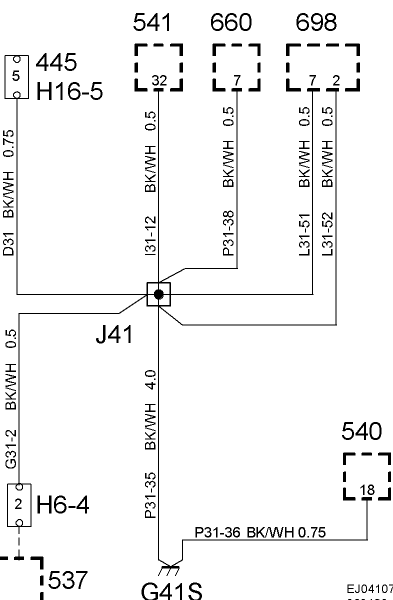

Fig 2: Grounding Point G41S Circuit Diagram
G05124342
