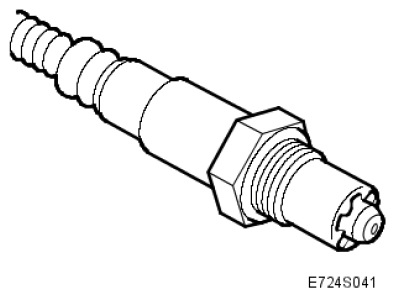

Pre-heated oxygen-sensor, front (592)
FRONT PRE-HEATED OXYGEN-SENSOR - RESISTANCE SPECIFICATION
| Type | Bosch LSF 4.7 With electrical preheating |
|
| Power, preheating | W | approx. 7 |
| Control range | V | 0-1 |
| Resistance at 20°C (68°F) pins 1-2 | Ohm | ca 9 (PTC) |
Pins 3 and 4 are gold plated.
NOTE:
The connector must not be treated with any sort of contact cleaner.
