Fuel pressure regulator

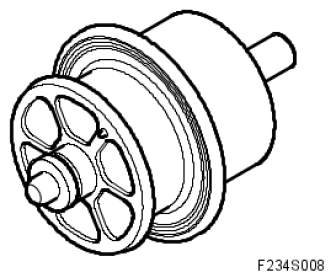

Fig 1: Identifying Fuel Pressure Regulator
G05170506Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE REGULATOR REFERENCE

Fuel pressure bar 3,0 ± 0,1
Pressure, air side Connected to intake manifold
