Grounding point G7, B207: Notes

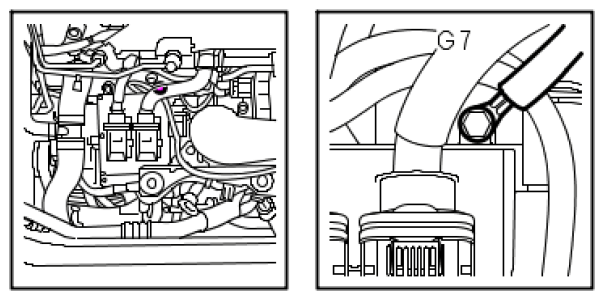

Fig 1: Identifying Grounding Point G7, B207

G05170500

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: Above the upper RH engine control module attachment eye
