Home >> Saab >> 2007 >> 9-3 2.0T, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Management System, MOTRONIC E9 >> Component Locator >> Connector H2-2

Connector H2-2

Location: In engine bay at right headlamp

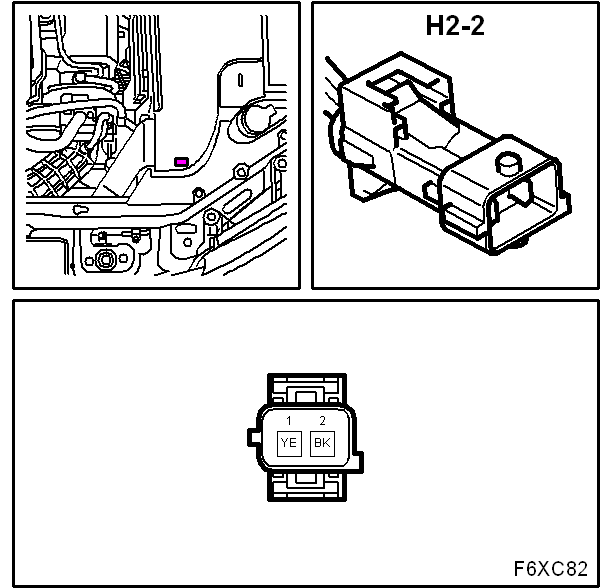

Fig 1: Identifying Connector H2-2 Location

G05058370

Courtesy of SAAB-SCANIA OF AMERICA, INC.
