Connector H10-8

Location: On engine next to upper intake manifold on gearbox side

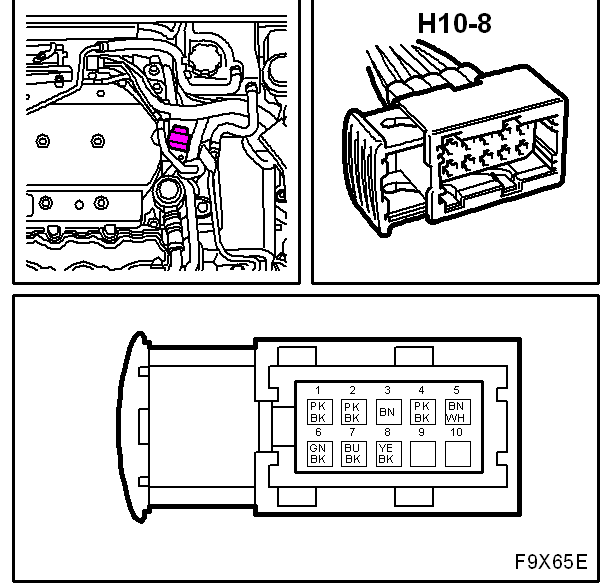

Fig 1: Identifying Connector H10-8 Location

G05058372

Courtesy of SAAB-SCANIA OF AMERICA, INC.
