Grounding point G34S: Notes

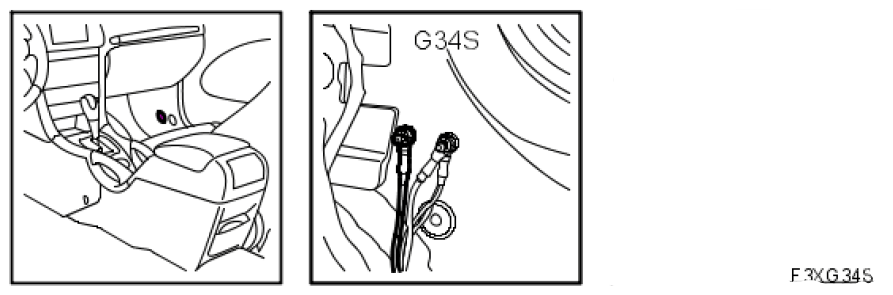

Fig 1: Identifying Grounding Point G34S
G05052234Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  At the floor below the right A-pillar (BK/WH cable)

The grounding point is connected to grounding point G43 via the crimp connections J108 and J80.
