Valve Gear: Notes

Fig 1: Identifying Valve Gear
G05052004Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Inlet valves
    INLET VALVES REFERENCE

    A  mm 5.9625 ± 0.0075
    B  mm 35.1 ± 0.15
    C  mm 102.27 ± 0.15
    D  mm 1.76
    E  ° 45°, 20'
    Fig 2: Identifying Valve Gear Dimension
    G05052005Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Exhaust valves
    EXHAUST VALVES REFERENCE

    A  mm 5.953 ± 0.007
    B  mm 30.1 ± 0.15
    C  mm 100.96
    D  mm 2.26
    E  ° 45° 20'
    WARNING: The exhaust valves are filled with salt and must not be heated to glowing else there is a risk of explosion.

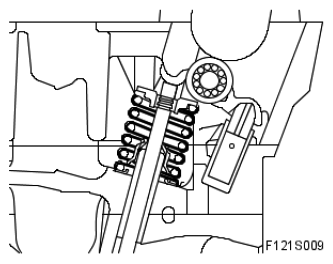

    Fig 3: Identifying Exhaust Valves
