To Remove

Man: Put the gear lever in neutral. Auto: Put the selector lever in position P. Remove the key from the ignition switch.
Remove relay no. 8 in the ENGINE BAY ELECTRICAL CENTER 342 (UEC) (2006) or ENGINE BAY ELECTRICAL CENTER 342 (UEC) (2007) .

Fig 1: Removing Relay No. 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect 83 93 886 DIAGNOSTICS CABLE, LH SYSTEM to relay holder sleeves 87 and 30. Make sure that the switch is in the OFF position.

Fig 2: Connecting (83 93 886 Diagnostics Cable, LH System) To Relay Holder Sleeves 87 & 30
Courtesy of SAAB-SCANIA OF AMERICA, INC.

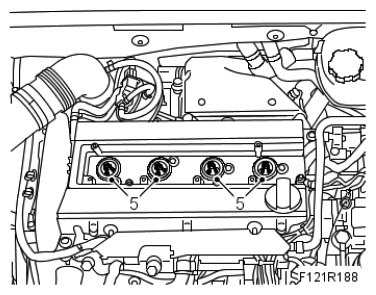

Remove the cover over the ignition coils, undo the ignition coils and move them aside.

Fig 3: Removing Ignition Coil Covers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the spark plugs.

Fig 4: Removing Spark Plugs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the Motometer compression tester for petrol engines to cylinder 1 with a new card.

Fig 5: Installing Identifying Motometer Compression Tester For Petrol Engines To Cylinder With New Card
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Run the starter motor using the test lead switch until the needle stops rising.
Repeat the measurement procedure on the other cylinders. For minimum compression pressure, see GENERAL DATA .
