To Fit

  1. Fit the spark plugs.

    Tightening torque 20 Nm (15 lbf ft).

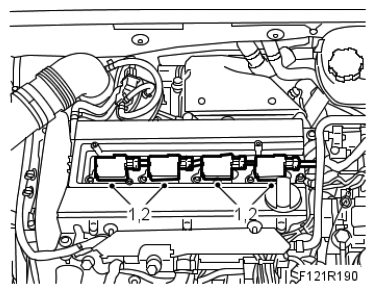

    Fig 1: Installing Spark Plugs & Ignition Coils
    G05051699Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the ignition coils.

    Tightening torque 8 Nm (6 lbf ft).

  3. Fit the cover over the ignition coils.
    Fig 2: Installing Ignition Coil Cover
    G05051700Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the test cable and put back relay no. 8.
