To Remove

  1. Remove TIMING CHAIN AND CAMSHAFT SPROCKET .
  2. Remove the chain's guide rails.
    • Remove the chain tensioner (A)
    • Remove the chain's guide rails (B)

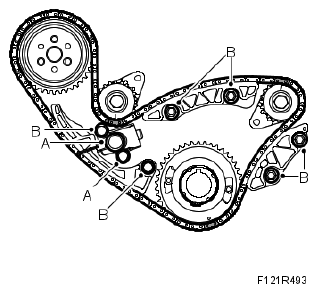

      Fig 1: Removing Chain Tensioner & Chain's Guide Rails
      G05051686Courtesy of SAAB-SCANIA OF AMERICA, INC.
