Grounding point G34S: Notes

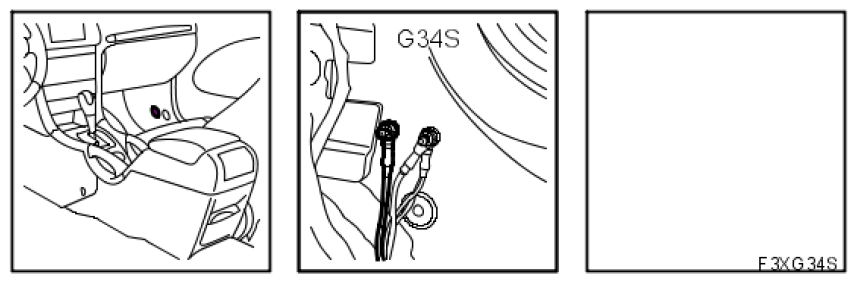

Fig 1: Identifying Grounding Point G34S
G05171709Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  At the floor below the right A-pillar (BK/WH cable)

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.
